PZ-7D Dry shotcrete machine

• Production capacity：7m³/h

• Working pressure：0.4-0.6Mpa

• Maximum aggregate diameter：20 mm

• Total weight：800kg

SWG12 CNC Stirrup bending machine

• Single line processing capacity：φ4-12mm

• Two-line processing capacity：φ5-10mm

• Bending angle：＜±180°

• Length accuracy：±1mm

GL1500-2500 Steel reinforcement cage seam welder

• Diameter of main bar（mm）：∅12--∅40

• Cage length（m）：9-27

• Model：GT1500-2500

• Rated total power（kw）：15/23/27

GSZ-8 Double-cylinder pulping and grouting machine

• Theoretic output quantity：8m³/h

• Working pressure：0-5Mpa

• Plunger cylinder：2

• Motor speed：1480r/min

GL-G2L32 CNC Steel bar bending center

• Steel bar diameter：10-32mm rebar

• bending direction ：Two-way

• bending speed：60°/s

• Angle accuracy ：±1°

YT-28 Air-leg rock drill

• Cylinder bore：80mm

• Piston stoke：60mm

• Impact energy：≥70(0.63Mpa)J

• Working pressure：0.63Mpa

P20D Diesel Concrete shotcrete and grouting integrated pump

• Production capacity : 3～22 m³/h

• Outlet pressure of concrete : 8MPa

• System pressure : 22MPa

• Main motor power : 42kW

GL726 Crawler DTH Drilling Rig

• Applicable rock：f=6~20

• Drilling diameter：90~130mm

• Impact frequency：950~1500 t/min

• Rotation torque：1500N.m

P40D concrete conveying pump

• Concrete delivery volume：40m3/h

• Concrete outlet pressure：10MPa

• Maximum aggregate diameter：10~35mm

• Engine power：62KW

GL250 Rock drill

• Bore：79.4mm

• Stroke：73.25mm

• Air Consumption：3.7M³/5bar

• Blows/MinuteBar：2050/5

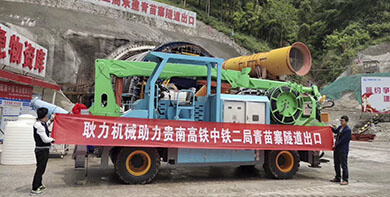

GHP3017E Engineering Concrete Wet Spray Trolley

• main motor power：55KW

• injection displacement：30m³

• Vehicle size：7890x2680x3200mm

• Curb weight：17000KG

GL-3ZA Tri-plunger high-pressure grouting pump

• Theoretical displacement：207L/min
• Horizontal delivery distance：0-300m
• Vertical delivery distance：0-120m
• Inlet diameter：64mm
