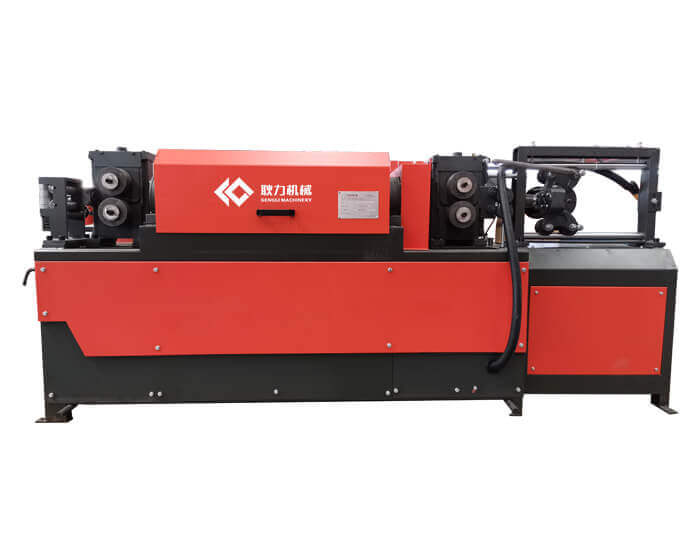

GL4-16A CNC Hydraulic Bar Straightening and Cutting Machine

  • Straightening diameter range：Ф4-16mm
  • Traction speed：45m/min,48m/min
  • Fixed length：300-9000mm（can be lengthened）
  • Cutting length tolerance ：±10mm
Applied range: Mainly used for straightening and cutting to length, suitable for cold-rolled grade III steel bars, cold-rolled round steel bars for construction, and adjustable straight hot-rolled round steel bars.
Online inquiry Send Email

Features

High automation and good safety

t has the advantages of high automation and fast traction speed ,and also equipped with auto counter stop device for safety concerns.

To different staff members applicable

The error is small, minimum material loss. To different staff members applicable.

This machine is suitable

This machine is suitable for straightening and cutting the round bar or cold drawn steel bar on the

Simple operation and high production efficiency

Straightened bars almost have no surface scratch and have good straightness and less strength loss；

Parameter

Model

GL4-16A

Straightening diameter range

Φ4-Φ16mm

Traction speed

45m/min

Fixed length

300-9000mm

Cutting length tolerance

±10mm

Straightening degree

±2mm/m

Rated power

27.5KW

Machine weight

1300kg

Dimension

L2900×W1150×H750mm
