Connection type：direct connection
Gas tank：2m³
Motor power：132KW
Air displacement：22-24
Heavy and light industries, mining, hydropower, seaports, engineering construction, oil and gas fields, railways, transportation, shipbuilding, energy, military and other industries

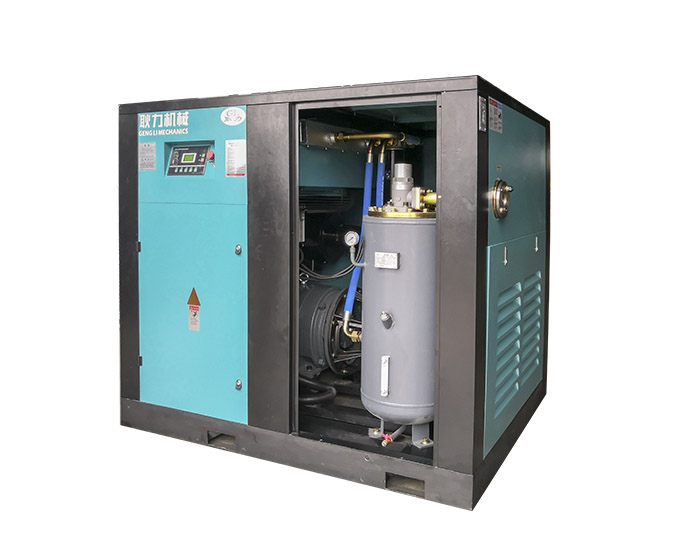

Features
Simple structure and convenient maintenance
Air compressor is simply and reasonably designed ,convenient for later maintenance.
Small vibration ,low noise
Compared with same types of air compressor,it has the advantages of low noise and no foundation to,improve working environment greatly.
Air cooling way , lubricating oil with large capacity
Adopting air cooling way and the capacity of lubricating oil could reach 70L.
Easy to move at the work site
With small size and light weight to reduce labor cost and improve work efficiency.
Parameter
Model | GL132A |
Exhaust volume | 22 |
Exhaust power | 0.8Mpa |
Motor power | 132kw |
Motor rotating speed | 2985r/min |
Voltage &Frequency | 380V/50HZ |
Motor protection level/Insulation grade | IP23/F |
Drive way | Direct drive |
Noise value at one meter | 82±3dB(A) |
Cooling method | Air cooling |
Lubricating oil quantity | 70L |
Carry capacity of lubricating oil | 1~3ppm |
Starting mode | Star triangle drive |
Exit size | DN50 |
Total weight | 1700kg |
Dimension | L2000xW1550xH1710mm |
