GL726 Crawler DTH Drilling Rig


  • Applicable rock:f=6~20

  • Drilling diameter:90~130mm

  • Drilling hole depth:25m(vertical)/30m(horizontal)

  • Dimensions (L*W*H):5620x2045x1950mm

Applied range:

GL726 crawler down-the-hole drill carriage is mainly used for drilling blast holes in open-pit projects such as mining and quarrying, road construction, water conservancy and electric power.



Features

Well-integrated and powerful

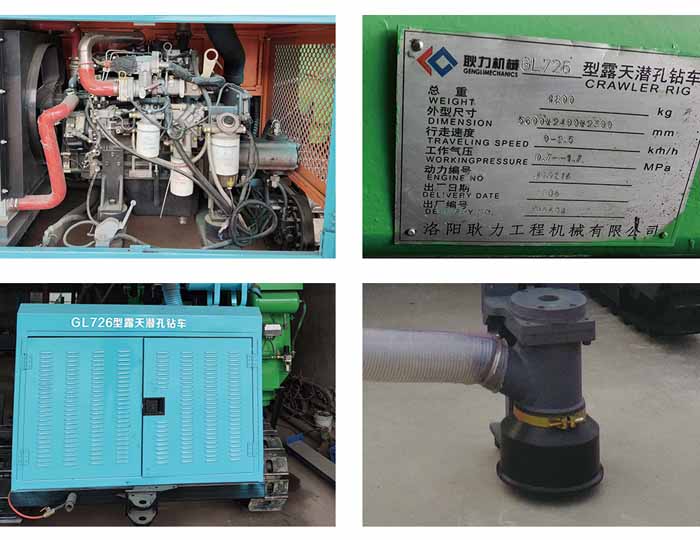

It is of compact structure, well integrated and easy to move and its two systems are powered by a diesel engine with six cylinders.

New hydraulic technology

Using new hydraulic technology, low air consumption, large rotating torque, easy to move holes and position, at the same time, the thruster carriage has telescopic function, when drilling operations.

High working efficiency

The drilling rig has reliable performance and high rock drilling efficiency. The drilling speed on medium-hard rocks is 2-3 times that of low-pressure drilling rigs, with high efficiency and low cost.

self-propelled hydraulic DTH Drilling Rig

The carriage is supported on the ground with good stability.

Parameter

Part Nameprojectparameter
Whole machineDimensions (L*W*H)5620x2045x1950mm
Total Weight4t
Applicable rockf=6~20
Drilling diameter90~130mm
Drilling vertical hole depth25m
Drilling horizontal hole depth30m
Drill boomDrill boom pitch angle70°up and down
Boom swing angle30°left and 30°right
Pitch angle of carriage100°Up and down
Swing angle of carriageLeft 30°Right 30°
(Special working conditions 90°)
Maximum lifting force18KN
One-time advancing trip3000mm
Propeller compensation length1200mm
Maximum height of drilling horizontal hole3500mm
Working air pressure
 (when equipped with impactor)
0.7~1.6Mpa
Air consumption
 (when equipped with impactor)
7~12m³/min
Impact frequency950~1500 times/min
Rotating speed0~70r/min
Rotation torque1500N.m
monitor rate33kw
ChassisWalking speed2.5km/h
Stand-alone climbing ability25°
Height of chassis from ground300mm
