KG410/KG410H DTH Drilling Rig For Open Use


  • Drilling hardness:f=6-20

  • Drilling diameter:90-115mm

  • Depth of economical drilling:25m

  • Rotary speed:0-120rpm

Applied range:

It can drill vertical, inclined and horizontal holes, used for drilling and pre-splitting holes in open pit mines and stone works, etc.


Features

The drll rig meets national standards for emissions and environment

Equipped with the Yuchai four-cylinder engine (China ll), the drll rig meets national standards for emissions and environment

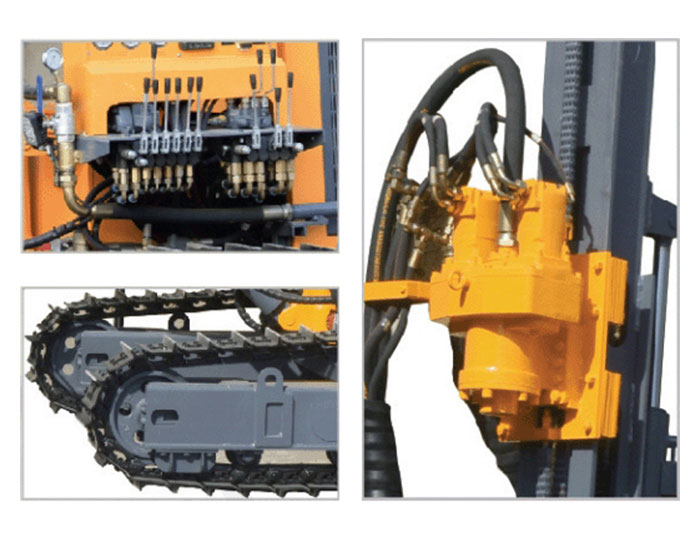

The falding frame track, four-wheel drive and tramming motor

The falding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity. Theexpanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme positon.

The double-motor rotationincreases the rotary torque

The double-motor rotationincreases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the ifing force andreliability,

The thickened profle folder

The thickened profle folder is used for the housing thus improving its level ofintensity and riaiditvy: and the additional ring makeshandling and lifting convenient.

Parameter

Model of dril rigKG410KG410H
Weight of complete machine4500KG4700KG
Outer dimensions6150 x 2350 x 2700mm6150x 2350 * 2700mm
Drilling hardnessf=6-20
Drilling diameter90-115mm
Depth of economical drilling25m
Rotary speed0-120rpm
Rotary torque (Max)2000N·m (Max)
Lifting force40KN
Method of Feed0il cylinder+leaf chain
Feed stroke3980mm
ravelling speed0-2.5km/h
Climbing capacitys30°
Grund clearance280mm
ilt angle of BeamDown: 135,up: 50,total: 185
Swing angle of boomLeft: 100%,right: 45total: 145
Pitch angle of drill boomDown: 50 up: 25total 75
Swing angle of drill boomLeft 44,right 45”,total: 89”
Compensation length of beam900mm
Supporting powerYuchaiYCD4R23T8-80(59KW/2400r/min)
DTH hammerM30
Drilling rod∅64x3m
Air consumption10-17m3/min
Maximum height of horizontal hole2840mm
Minimum height of horizontal hole350mm
