Impact frequency：≥31 Hz
Piston stoke：70mm
Working pressure：0.63Mpa
Bit head size：R22×108
It is suitable for rock drilling operations in large mines, medium mines and tunnels.
Features
high working efficiency
It adopts air-water linkage, air-leg rapid advance and retreat, air-pressure adjustment and other mechanisms, and its control system is concentrated on the handle body
Extremely convenient operation and low noise
Light weight, high torque, high efficiency, and equipped with a muffler device can effectively reduce noise and change the exhaust direction at will
Small air consumption
Smaller air consumption when compared with other pneumatic rock drills on the market , same air compressor can connect more rock drills and greatly improve working efficiency.
Accessories of strong universality
Accessories of strong universality,when replace the product,users will not lose profit.
Parameter

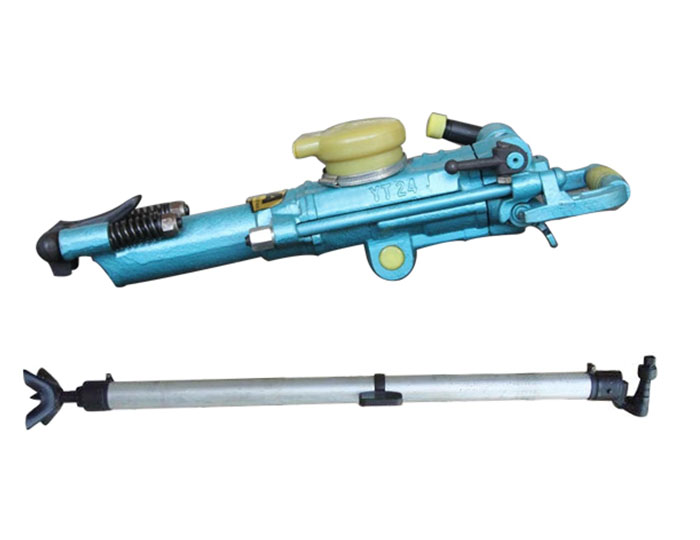

| model | YT24 |
| Weight | 24kg |
| Cylinder dia | Φ70 |
| Piston stroke | 70mm |
| Working pressure | 0.63 Mpa |
| Impact frequency | ≥31 Hz |
| Air consumption | 66.7L/s |
| Working water pressure | 0.3 Mpa |
| Rock drill hole depth | 5m |
| Bit head size | R22×108 |
| Water pipe inner dia | φ13 mm |
| Rock drill hole dia | φ34~φ45mm |
