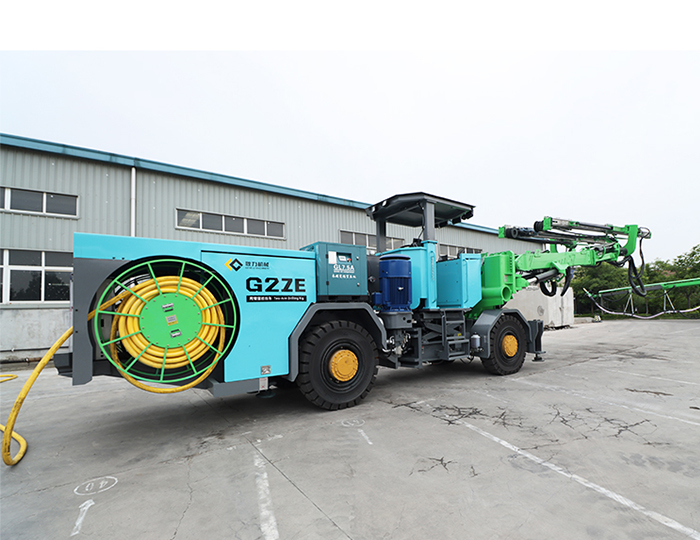

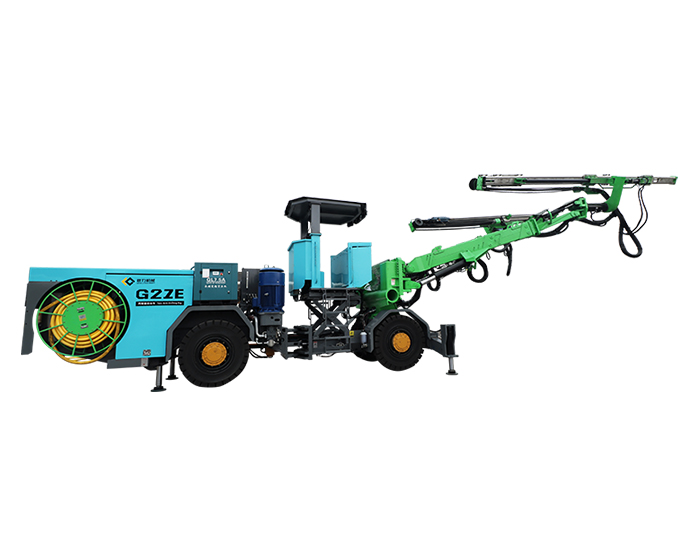

Drilling diameter：φ38mm-φ102mm
Drilling depth：5268mm
Telescopic length of working arm：1600mm
Total motor power：243.5kW
It is used for drilling and blasting drilling operations or bolt hole operations in large and medium-sized tunnels such as railways, highways, water conservancy, mining and other large and medium-sized tunnels.
Features
Strong engine power, it can also cope with severe cold and plateau environment
The high-altitude turbocharged engine has strong power and sufficient power reserve to meet the requirements of severe cold and plateau environments.
Imported drive axle, engineering chassis, strong climbing ability
Dana original imported drive axle, four-wheel drive walking system, heavy-duty engineering chassis, fast transition speed and strong climbing ability.
The drilling speed is fast and the drilling tool is very durable
With automatic anti-sticking function and automatic lubrication system, the drilling speed is fast and the consumption of drilling tools is low.

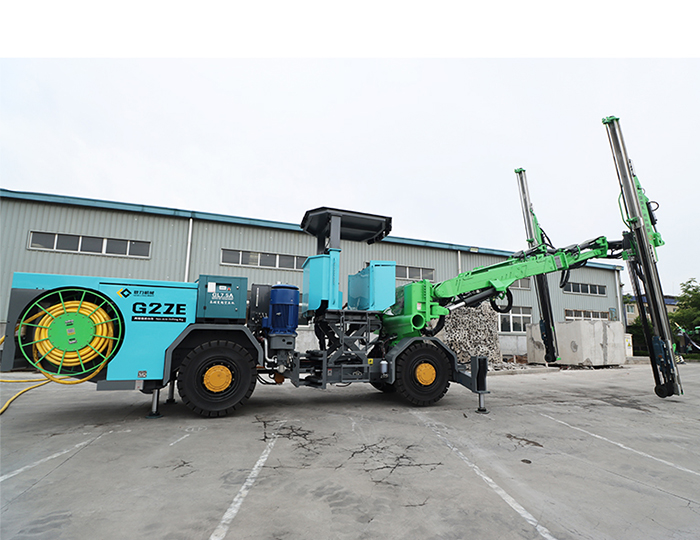

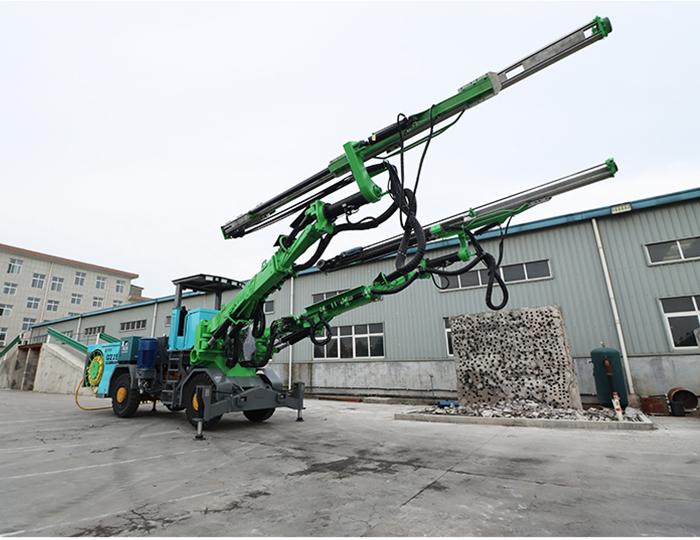

Working arm form-double triangle + self-parallel + square arm
The drill arm is directly positioned with triangular support, and has a full-directional self-parallel holding function, which ensures accurate positioning and stable action.
Parameter
| Item | Name | Parameters |
| Whole machine | L×W×H（mm） | 16520×2925×3250 |
| N.W（t） | 45 | |
| Applicable section（W×H/m） | 15.8×12.8 | |
| Hydraulic drilling machine | Shank | R32,R38 or T38 |
| Impact power（kW） | 18 | |
| Impact frequency（Hz） | 50 | |
| Maximum pressure of hydraulic system（bar） | 230 | |
| Rotation system | Independent rotation | |
| Rotation speed（rpm） | 0~300 | |
| Maximum turning torque（N·m） | 540 | |
| Drilling speed（m/min） | 1.5~2.2 | |
| Diameter of drilling hole（mm） | Φ38mm~φ102mm | |
| Propulsion beam | Length（mm） | 7102 |
| Drilling depth（mm） | 5268 | |
| Working platform | Range（W×H）（m） | 15.8×12.8 |
| Rated load（Kg） | 400 | |
| Drilling beam | Propulsion compensation（mm） | 1800 |
| Arm extension（mm） | 1600 | |
| Parallel hole holding | Omnidirectional | |
| Propulsion beam | 360 Rotation | |
| Lifting angle（°） | +70～-30 | |
| Swing angle（°） | ±45 | |
| Chassis | Walking mode | By wheel |
| Driving model | Four-wheel drive | |
| Steering | Rear-wheel steering | |
| Motor power（kW） | 194 | |
| Maximum walking speed（km/h） | 15 | |
| Maximum climbing speed（°） | 14 | |
| Turning radius（m） | Inner≥6.7m，Outer≥12.1m | |
| Hydraulic system | Motor power（kW） | 3×75 |
| Maximum system pressure（bar） | 230 | |
| Maximum capacity of hydraulic tank（L） | 850 | |
| Air system | Working capacity（m³/min） | 1 |
| Maximum pressure（bar） | 2~8 | |
| Motor power（kW） | 7.5 | |
| Water system | Working capacity（L/min） | 266 |
| Water pressure（bar） | 2~12 | |
| Electrical system | Power（kW） | 243.5（3×75+7.5+11） |
| Voltage（V） | 380 | |
| Cable（m） | 80 |
