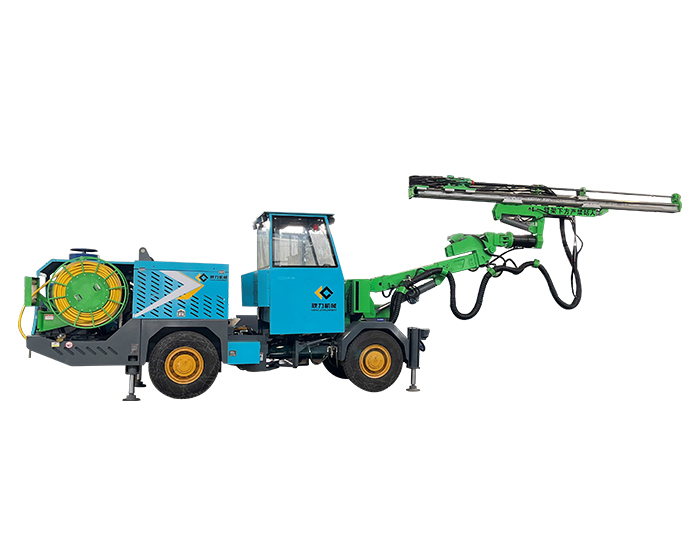

GME6595D anchor rod jumbo

Drilling depth：4610mm
Drilling speed：1.5-3.2m/min
Drilling diameter: Φ38~Φ102mm
Maximum walking speed：15km/h

Applied range:

It features stable performance, diverse functions, and compact structure, and is widely used in railways, highways, national defense tunnels, mines, hydropower and other fields.

Online inquiry

Send Email

Features

Fast drilling speed

Equipped with a French Montbey rock drill, it features fast drilling speed, low tool consumption, and low failure rate.

Good chassis stability

The vehicle utilizes a robust articulated heavy-duty chassis, ensuring good stability during travel and rock drilling operations.

Smooth Drill Arm Movement

The drill arm adopts a right-angle design, featuring all-around self-parallel maintenance, precise positioning, smooth operation, and high reliability.

Four-wheel drive system

It adopts a hydraulic transmission and four-wheel drive system, which provides strong power, excellent climbing ability, and stable performance.

Parameter

Part Name	project name	Specification/Model
Whole machine	Overall dimensions(LxWxH)	12260×1930×2340/3200mm
	Total Weight（t）	12
	Effective working section	3.5×3.5～8.2×6.5m
	Anchor bolt working section (WxH)	14.2×9.5m
Hydraulic drilling machine	Shank	R32或T38
	Drilling speed	1.2～2m/min
	Diameter of drilling hole	φ32～φ76mm
Propulsion beam	Length	6290mm
	Drill rod length	4915mm
	Drilling depth	4610mm
Drilling beam	Propulsion compensation	1800mm
	Arm extension	1250mm
	Parallel hole holding	Omnidirectional
	Propulsion beam	360 Rotation
Chassis	Walking mode	By wheel
	Driving model	Four-wheel drive
	Steering	Articulated steering ±40°
	Rated power	63kW
	Maximum walking speed	15km/h
	Maximum climbing ability	25%
	Turning radius	inside≥2.7m，outside≥5.2m
Hydraulic system	Main motor power	55kW
Hydraulic system	System pressure	130～200bar
Gas supply system	Displacement	0.3m³/min
Gas supply system	working pressure	10bar
water supply system	flow	100L/min
water supply system	Working water pressure	2～12bar

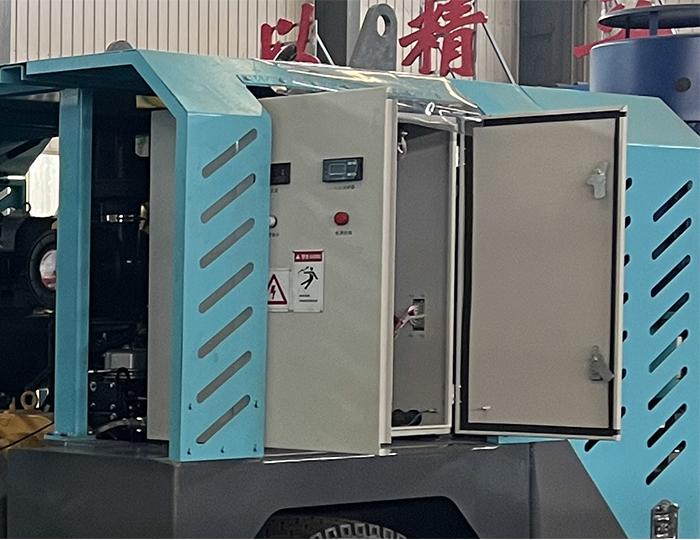

Electrical System	Total motor power	60.2（55+2.2+3）kW
	Supply voltage	380V

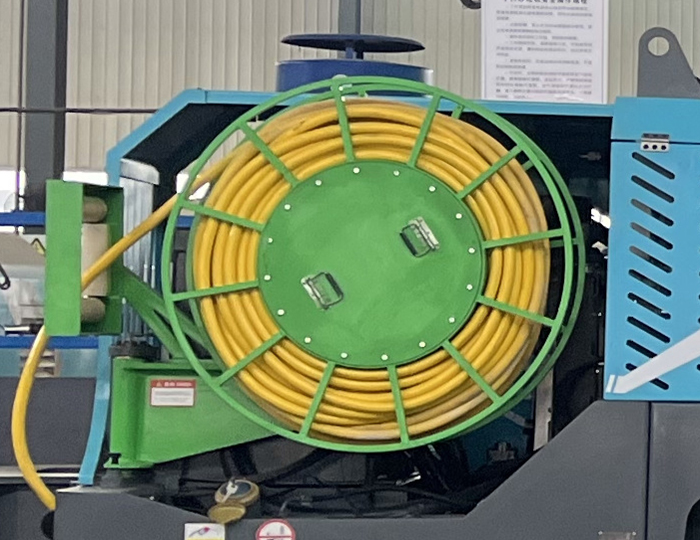

	External cable length	80m
