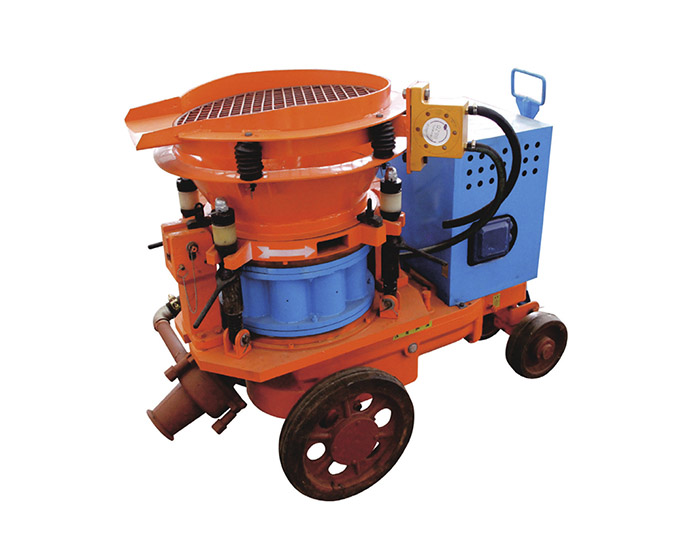

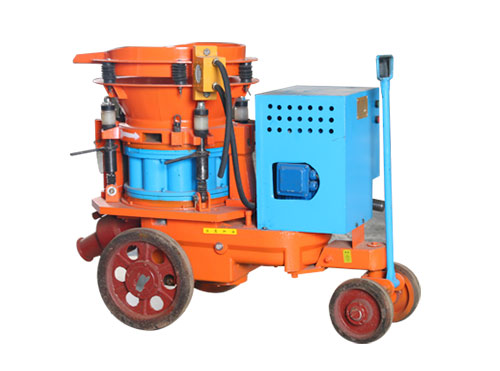

PZ-5D Dry shotcrete machine


  • Production capacity:5m³ /h

  • Working pressure:0.4-0.6MPa

  • Inner diameter of delivery pipe:Φ51 mm

  • Maximum delivery distance:Horizontal:200m Vertical:20m

Applied range:

Used for sprayed concrete construction work such as tunnels, underground works, slope protection, etc. long lasting.


Features

Reliable performance,easy operation

Machine with advanced technology ,reasonable structure ,stable performance ,easy operation and long service life.

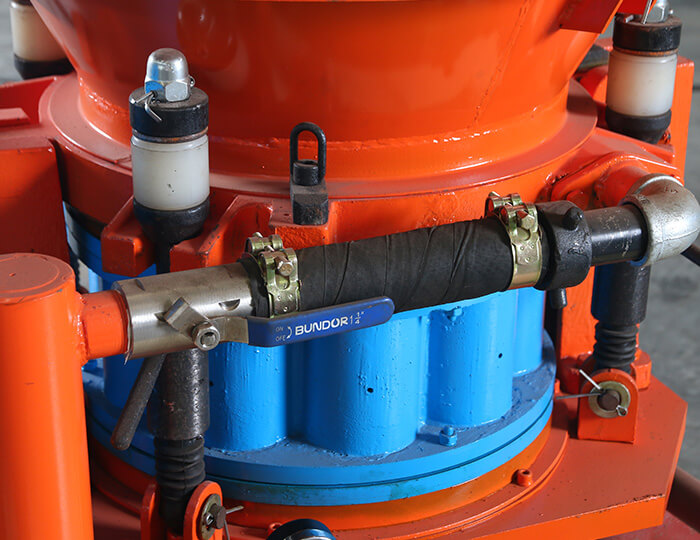

Pure copper motor with strong power

Pure copper motor with strong power to ensure working efficiency and easy operation.

Parameter

Production capacity5m³/h
Working pressure0.4-0.6Mpa
Inner diameter of delivery pipeΦ51mm
Maximum delivery distanceHorizontal 200m,Vertical 20m
maximum aggregate diameter20mm
Water cement ratio0.4-0.45
Maximum air consumption8m³/min
Motor modelY132M2-6
Feeding height1100mm
Motor power5.5KW
Voltage grade380V
Dimension1450*710*1100mm
Machine weight650kg
