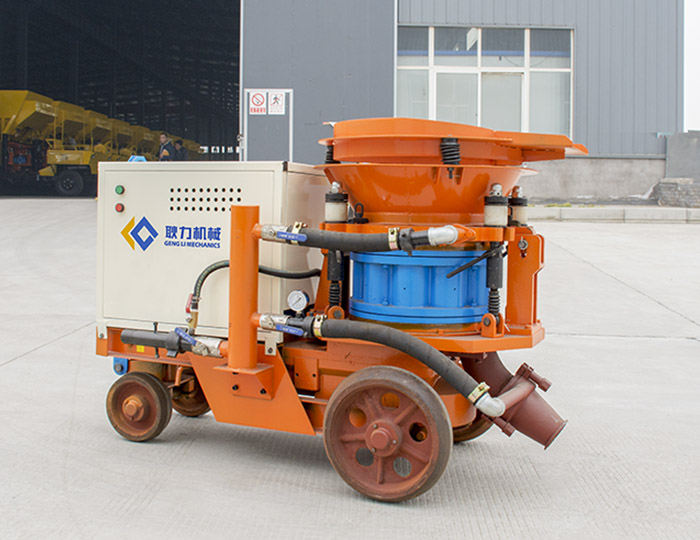

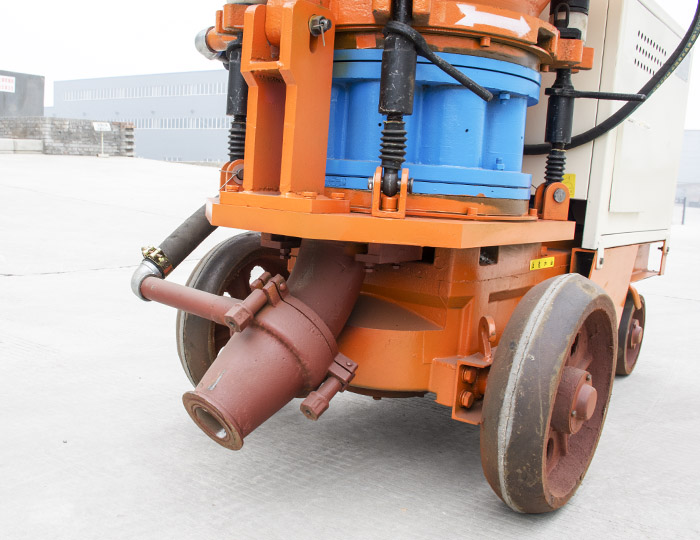

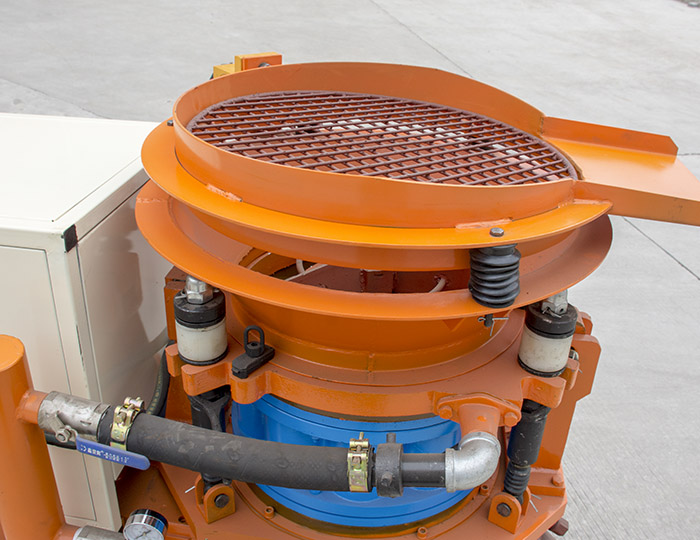

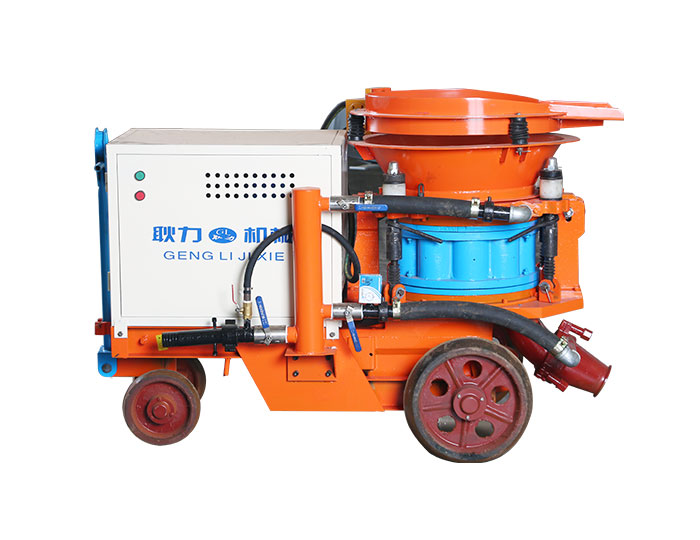

PZ-7D Dry shotcrete machine


  • Production capacity:7m³ /h
  • Working pressure:0.4-0.6Mpa
  • Maximum aggregate diameter:20 mm
  • Total weight:800kg
Applied range: Used for sprayed concrete construction work such as tunnels, underground works, slope protection, etc. long lasting.

Features

Pure copper motor with strong power

Pure copper motor with strong power to ensure working efficiency and easy operation.

Reliable performance, easy operation

Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life, easy to lift.

Reasonable design ,stable and safe

Compact turbine vortex structure,stable operation and low noise .

Full enclosed gearbox,support automatic and manual switching ,durable pale

Full enclosed gearbox,support automatic and manual switching ,durable pale

Parameter

Production capacity 7m³/h
Working pressure 0.4-0.6Mpa
Inner diameter of delivery pipe Φ57mm
Maximum delivery distance Horizontal 200m,Vertical 20m
maximum aggregate diameter 20mm
Water cement ratio 0.4-0.45
Maximum air consumption 12m³/min
Feeding height 1100mm
Motor power 7.5KW
Voltage grade 380V
Dimension 1660*800*1100mm
Machine weight 800kg
