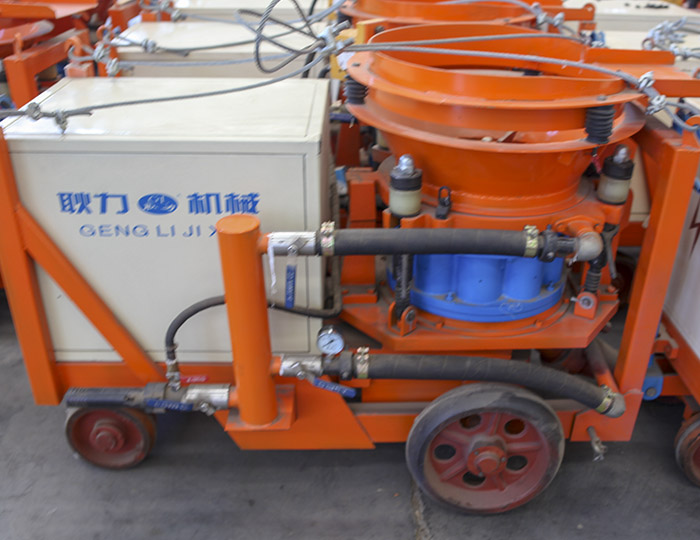

PZ-7F Dry shotcrete machine


  • Production capacity:7m³ /h
  • Working pressure:0.4-0.6MPa
  • Inner diameter of delivery pipe:Φ57 mm
  • Maximum aggregate diameter:20mm
Applied range:

Features

Pure copper motor with strong power

Pure copper motor with strong power to ensure working efficiency and easy operation.

Accurately calculate any machining angle

Accurately calculate disc squares,machining any angles you want

Reasonable design ,stable and safe

Compact turbine vortex structure,stable operation and low noise .

Full enclosed gearbox,support automatic and manual switching ,durable pale

Full enclosed gearbox,support automatic and manual switching ,durable pale

Parameter

Production capacity

7m³/h

Working pressure

0.4-0.6Mpa

Inner diameter of delivery pipe

Φ57mm

Maximum delivery distance

Horizontal 200m,Vertical 20m

maximum aggregate diameter

20mm

Water cement ratio

0.4-0.45

Maximum air consumption

12m³/min

Feeding height

1100mm

Motor power

7.5KW

Voltage grade

380V

Dimension

1700*850*1150mm

Machine weight

850kg
