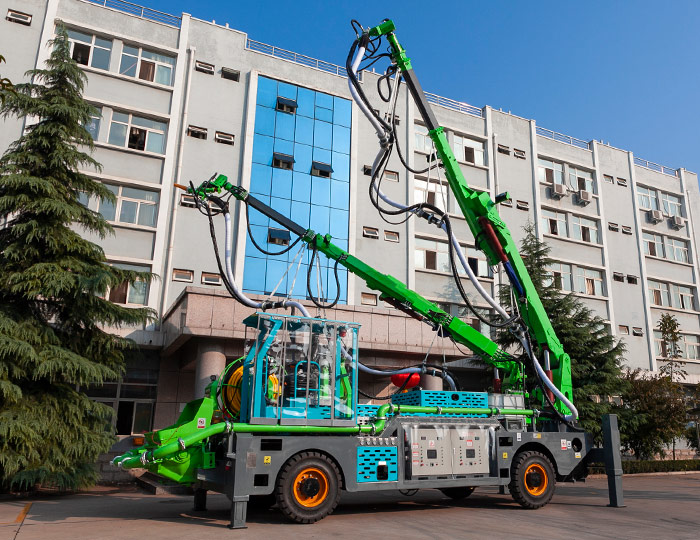

GHP6015G-II Wet Shotcrete Machine


  • Theoretical spraying displacement: 30m3/h
  • Diameter of concrete cylinder: φ180mm
  • Stroke of concrete cylinder: 1000mm
  • Max aggregate diameter: φ15mm
Applied range: The GHP20A vehicle-mounted concrete wet spraying machine adopts a double-pump double-circuit hydraulic system, which has better performance and more stability. Automobile-type chassis, flexible movement, stable and reliable performance, and rapid transition.

Features

stronger anti-blocking ability

The pumping system with high outlet pressure and the large-diameter sandblasting hose realize stronger anti-blocking ability

GPS remote location and fault diagnosis functions reduce downtime

The working display screen monitors the running data and working status all the way

Four-wheel drive and four-wheel steering

The airflow rate can be remotely adjusted depending on the needs, easier to operate.

The airflow rate can be remotely adjusted depending on the needs, easier to operate.

Equipped with high pressure cleaning system, water pipe reel and 500L large capacity water tank

Parameter

Item Basic performance  Unit  Data
Parameter Dimension(L×W×H) mm  7710×2750×3185
Weight kg 15000
Pumping system Theoretical spraying displacement  m3/h 30
Diameter of concrete cylinder  mm  φ180
Stroke of concrete cylinder  mm  1000
Diameter of delivery pipe  mm  φ120~φ90 Variablediameter
Max aggregate diameter  mm  φ15
Outlet pressure of concrete  bar 83
Hopper capacity m3 0.3
Traveling system Traveling mode    Wheel type
Steering    Four-wheel steering
Driving mode    Four-wheel driving
Minimum turn radius  m 5.8
Engine power track  KW 90
Wheelbase x wheel  mm 3900×1980
Maximum traveling speed  km/h 20
Max.Gradeability    36%(20°)
Minimum ground clearance  mm 357
Braking distance m 5(20km/h)m
Mechanicalarm Maximum spraying height  m Depth 7.3--Height 15.8
Maximum spraying width  m ±13.5
Swing angle of arm    270°
Circular rotation angle of nozzle    ±180°
Left-right rotationangle of nozzle    ±128°
Swing angle of nozzle   8°( continuous)
Accelerator system Model of accelerator pump    SN12
Driving mode    Hydraulic drive
Displacement of accelerator  L/h  0~1000
Max Outlet pressure  Bar  20
Volume of accelerator tank L 1000
Hydraulic system Power of main motor  kW 55
Oil tank volume  L 450
Degree of hydraulic oil pollution    NAS1638-9
Displacement of main pump ml/r 145
Washing system Pump model    3Wz-1814HM
Tank volume  L 500
Driving mode   Hydraulic drive
