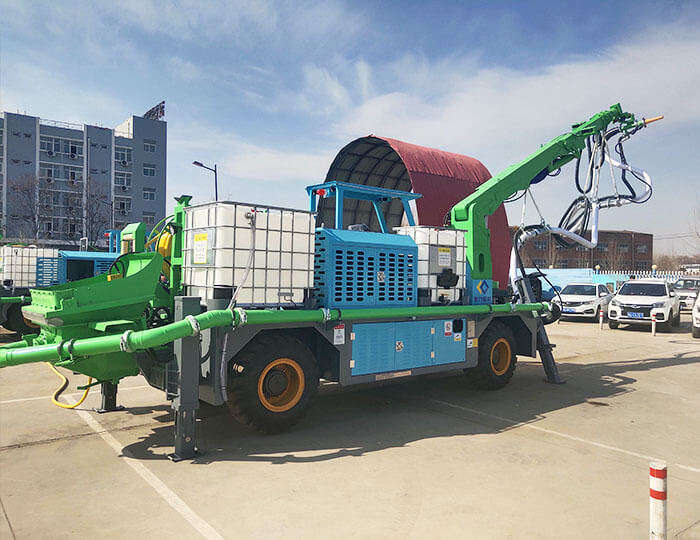

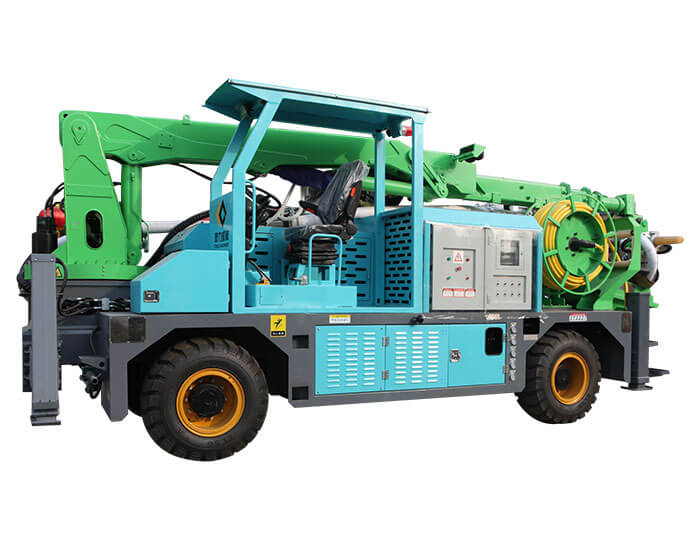

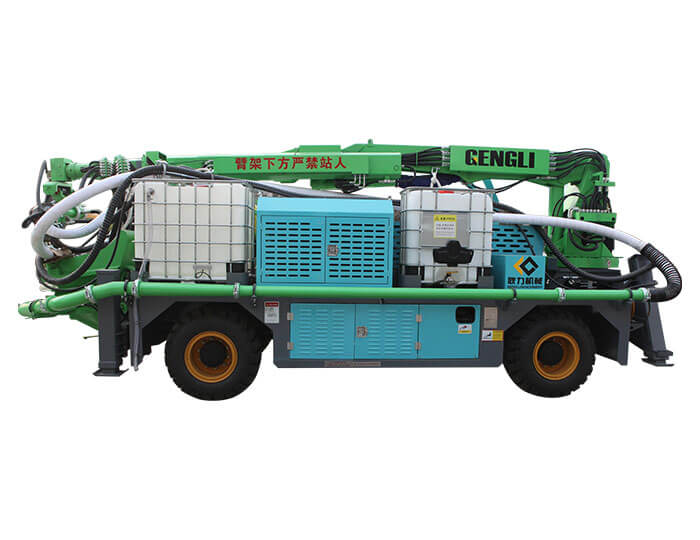

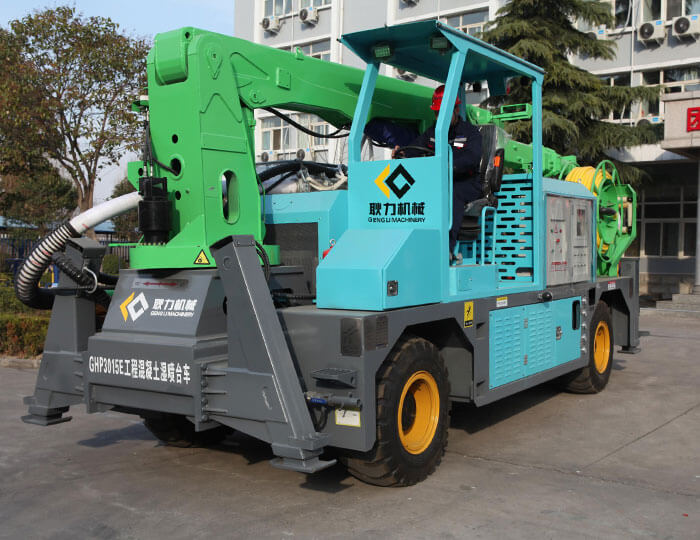

GHP3015E Engineering concrete wet spraying trolley

Theoretical spraying displacement:30m³/h
Cylinder bore：φ180mm
Cylinder stroke：1000mm
Delivery pipe diameter：φ125-φ90mm

Applied range:

Excellent structure, firmness and strong impact resistance. There are no blind spots in the construction of the working arm.

Online inquiry

Send Email

Features

Horizontal spraying

The mechanical arm can rotate 270° in the horizontal direction. It adopts two-stage telescoping. The telescopic length reaches 12 meters, and the maximum spray diameter is about 27 meters.

Vertical spraying

The mechanical arm In the vertical direction, the big arm can be raised upward by 70°, the small arm can be raised upward by 5° and down by 110°. The maximum spray height is 15.8 meters, and the downward spray can be 7.4 meters.

Electronic control system

Adopting a special controller for construction machinery, which is more resistant to dust and water; the failure rate is extremely low, and it can adapt to harsh environments. The panel is designed with a lower limit to prevent misoperation.

Remote control

Adopting customized remote controller, durable and strong, anti-interference ability, 100 meters long distance wireless remote control.

Parameter

Item	Basic performance	Unit	Parameters
Machine data	Dimension(L×W×H)	mm	7810×2750×3185
Machine data	Total weight	kg	16000
Pumping system	Theoretical spraying displacement	m3/h	30
	Cylinder bore	mm	ф180
	Cylinder stroke	mm	1000
	Delivery pipe diameter	mm	ф125～ф90 Variable
	Maximun aggregate size	mm	ф15
	Outlet pressure of concrete	bar	83
	Hopper volume	m3	0.3
Traveling system	Traveling way		Wheel type
	Driving axle		Wet brake axle
	Steering		Four-wheel steering
	Driving way		Four-wheel driving
	Minimum turn radius	m	5.8
	Engine power	kW	90
	Wheelbase×Wheel tread	mm	3900×1920
	Maximum traveling speed	km/h	20
	Maximum climbing degree		36%（20°）
	Minimum ground clearance	mm	357.5
	Braking distance	m	5(20km/h)
Mechanical arm	Maximum spraying height	m	Depth 7.4～Height 15.8
	Maximum spraying width	m	±13.5
	Swing angle of arm	（°）	270
	Rotary angle around the nozzle	（°）	±180
	Left-right turn angle of nozzle	（°）	±120
	Swing angle of nozzle	（°）	8（continuous）
Accelerator system	Accelerator pump model		SN02-24
	Driving way		Hydraulic
	Accelerator displacement	L/h	0～680
	Maximum outlet pressure	bar	20
	Accelerator tank volume	L	1000
Hydraulic system	Main motor power	kW	55
	Oil tank volume	L	450
	Degree of hydraulic oil pollution		NAS1638-9
	Main pump displacement	ml/r	145
Washing system	Water pump model		3WZ-1814HM
	Water pump volume	L	500
	Driving way		Hydraulic
