Shotcrete Capacity：35m3/h
Concrete Outlet Pressure：83bar
Conveying Pipe Diameter：ф125～ф90mm
Hopper Volume：0.3m³

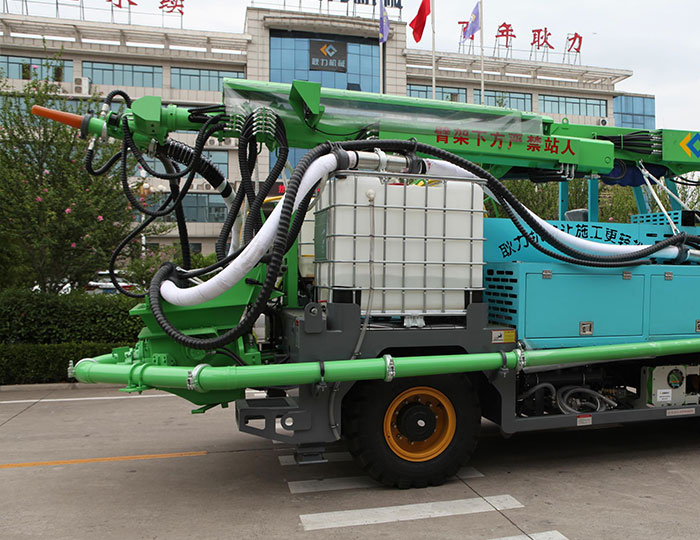

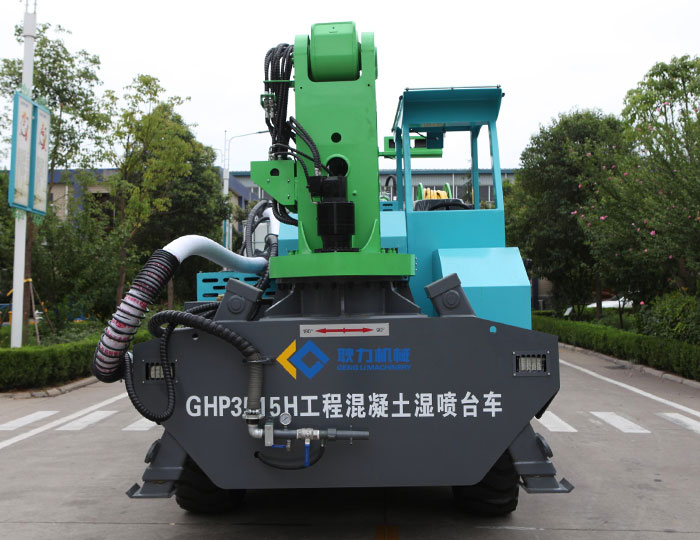

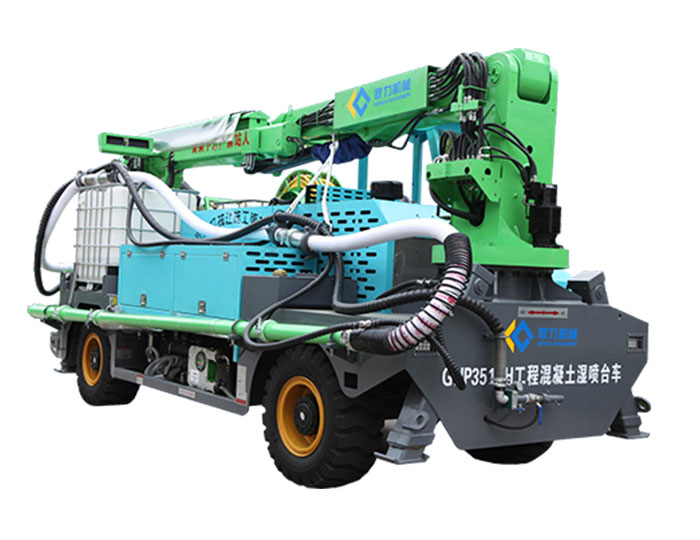

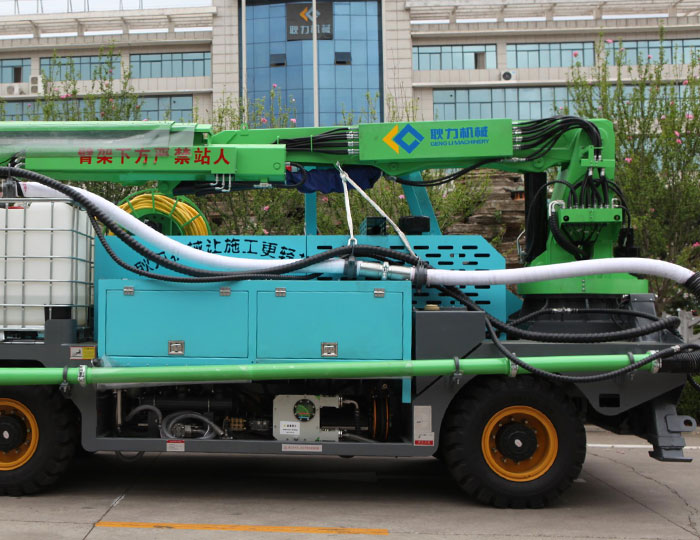

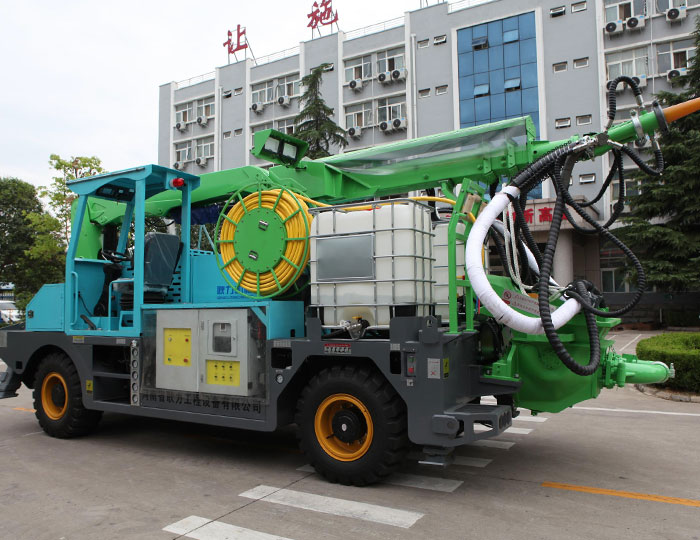

The equipment has a multi-joint degree of freedom controlled manipulator, with large operating coverage and no blind spots, which can meet the construction needs of various cross-section tunnels and improve construction efficiency.
Features
Remote Control
Customized remote control is adopted, which is durable, strong anti-interference ability, and 100 meters long-distance wireless remote control.
Dosing Pump
Accurate control by frequency conversion motor,Real-time monitoring of traffic.
Power Cable
Tensile and wear-resistant cables are standard configurations, which have a strong ability to resist Voltage fluctuations and prolong service life.
Concrete Pump
It adopts large bore and long-stroke pumping system, which has strong suction capacity. In theory, it can pump 35 cubic meters of concrete per hour, while reducing wear and prolonging service life.
Parameter
| Item | Specification | Unit | Parameter |
| Machine Data | Size(L×W×H) | mm | 7770×2645×3230 |
| Weight | kg | 15500 | |
| Pumping System | Shotcrete Capacity | m3/h | 35 |
| Oil Cylinder Bore | mm | ф100 | |
| Piston Cylinder Bore | mm | ф180 | |
| Piston Cylinder Stroke | mm | 1000 | |
| Conveying Pipe Diameter | mm | ф125～ф90 | |
| Max. Aggregate Size | mm | ф15 | |
| Concrete Outlet Pressure | bar | 83 | |
| Hopper Volume | m3 | 0.3 | |
| Traveling System | Traveling Method | / | Wheel |
| Driving Axle | / | Wet Brake Axle | |
| Steering | / | Four Wheel Drive | |
| Min. Turning Radius | m | 10 | |
| Engine Power | kw | 97 | |
| Wheelbase | mm | 3940×1876 | |
| Walking SpeedⅠ/Ⅱ/Ⅲ/Ⅳ | km/h | 5/10/17.5/20 | |
| Max. Climbing | 36%（20°） | ||
| Min. Ground Clearance | mm | 300 | |
| Braking Distance | m | 5(20km/h) | |
| Boom | Max. Spraying Height | m | Depth7.4～High15.8 |
| Max. Spraying Width | m | ±13.5 | |
| Swing Angle of Boom | （°） | 270 | |
| Rotary Angle around nozzle | （°） | ±180 | |
| Left-right turn angle of nozzle | （°） | ±120 | |
| Swing Angle of Nozzle | （°） | 8（continuous） | |
| Swing Angle of Nozzle | （°） | 8（continuous） | |
| Min. Tunnel Size | m | 4 | |
| Dosing System | Doding Pump | / | YD25R |
| Driving Method | / | Frequency Motor Drive | |
| Dosing Flow | L/h | 1000 | |
| Max. outlet pressure | bar | 12 | |
| Accelerator Tank | L | 1000 | |
| Electric System | Cable Specification | / | 3×35² |
| Cable Length | m | 80 | |
| Hydraulic System | Motor Power | kw | 55 |
| Oil Tank Volume | L | 370 | |
| Hydraulic oil pollution degree | / | NAS1638-9 | |
| Oil Pump Flow | ml/r | 145 | |
| Washing System | Water Pump Model | / | 3WZ-1814HM |
| Water Tank Volume | L | 500 | |
| Drive Method | / | Hydraulic |
