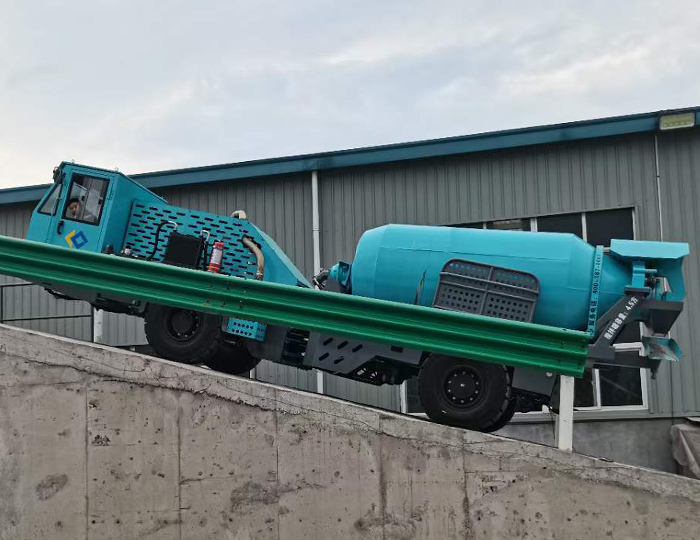

KJCJ-4 Mining concrete mixer truck

Geometrical capacity：5.5m³
Max.traveling speed：22km/h
Turning radius：4150/6200mm
Engine power：154KW/2200RPM

Applied range:

KJCJ-4 Mining concrete mixer truck has been designed for small and medium-sized tunnels such as small subways, small diversion tunnels, and mine tunnels.

Online inquiry

Send Email

Features Parameter Related Products Related News Contact

Features

Stable performance stable

Stable performance stable,key components are all well-knowntop brands.

four-wheel drive,and with strong passing performance.

Hydromechanical transmission,convenient to operate, four-wheel drive,and with strong passing performance.

high transportation efficiency

4m³mixing tank , high transportation efficiency .

enables flexible rotation and facilitates transition

Heavy-duty articulated frame, which effectively reduces the turning radius,enables flexible rotation and facilitates transition.

Parameter

Item No	Basic performance	Unit	Parameters
1	Dimension(L×W×H)	mm	8800×2000×2450（±50）
2	Total weight	kg	14000
3	Articulated angle	（°）	±43
4	Turning radius	mm	4150/6200
5	Min.ground clearance	mm	320
6	Approach angle/Departure angle	（°）	15/20
7	Max.climbing degree	（°）	15
8	Wheelbase×Wheel tread	mm	3870×1685
9	Engine power	kw	154/2200RPM
10	Diesel fuel tank	L	180
11	Chassis		Four-wheel driving/Articulated
12	Max.traveling speed	km/h	22
13	Braking distance	m	11
14	Brake		Service brake /Auauxiliary brake/Parking brake
15	Geometrical capacity	m³	5.5
16	Mixing volume	m³	0-4
17	Tank rotating speed-Travelling	r/min	1~3
18	Tank rotating speed-Unloading	r/min	0-18
19	Unloading speed	m³/min	≥0.65
20	Inclination angle	（°）	0-10.5
21	Discharging height	mm	920-1800
22	Feeding speed	m³/min	≥2.7
23	Feeding height	mm	2350
24	Feeding opening	mm	φ560
25	Hydraulic oil volume	L	170
