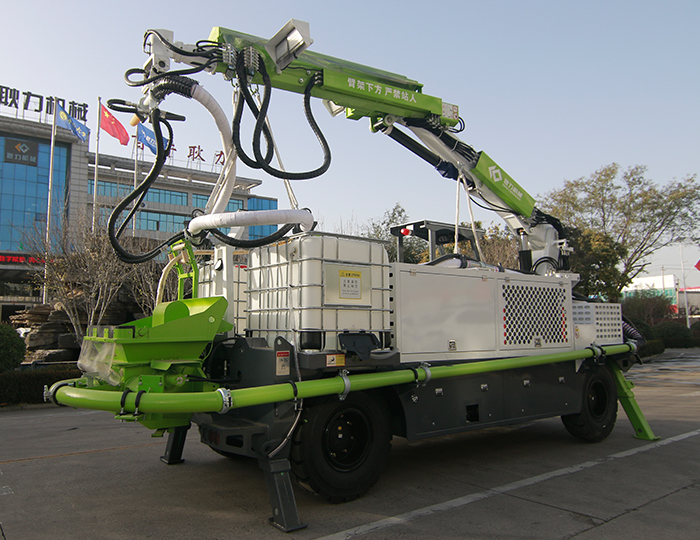

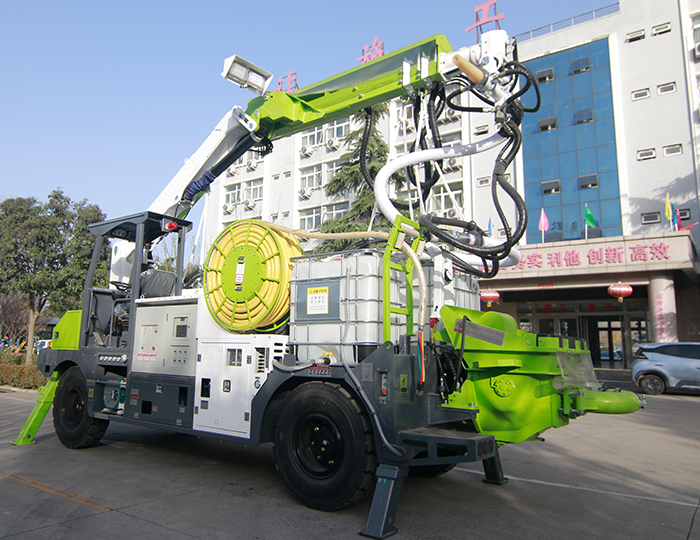

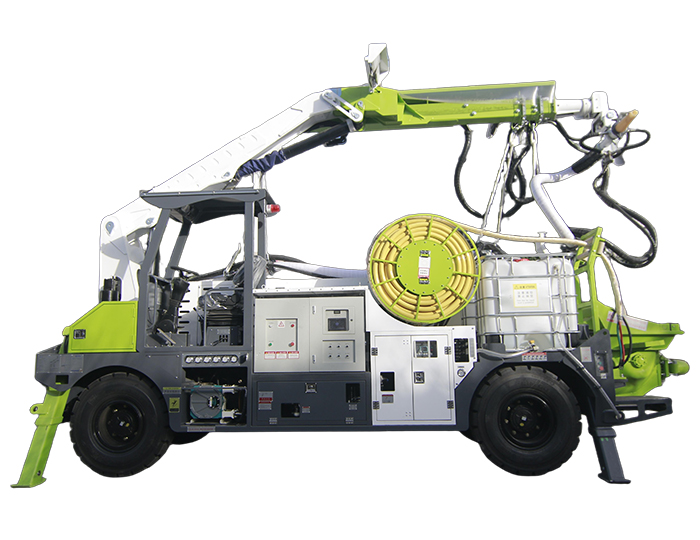

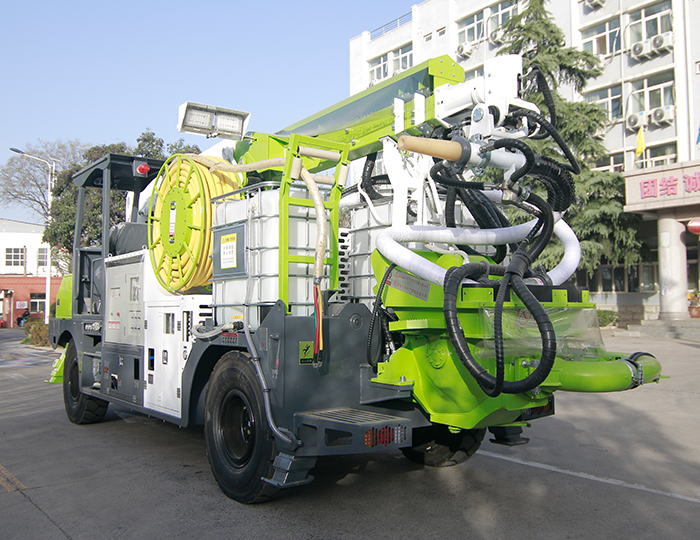

Theoretical spraying displacement：50m³/h
Outlet pressure of concrete:65bar
Minimum working section height: 2.5m
Maximum aggregate size： 15mm
GHP5016 is mainly used in railways,highway tunnels,slope protection,mine roadway water conservancy and hydropower projects,foundation pit support,military and civil underground projects,etc.
Features
Horizontal spraying reach
270°rotation angle,two-stage telescopic boom. The telescopic length reaches 12 m,and maximum spraying diameter is 27m.
Vertical spraying reach
In vertical direction,boom could be lifted up by 70°and down to 110°.Maximum spraying height is 16m,and maximum spraying depth is 7.4m.
Chassis system
118kW diesel engine and with hydraulic transmission,electronically controlled power shift without parking,four gears for forward,two gears for reverse,more convenient to control,stable performance.
Drive axle
Adopting enhanced wet brake steering drive axle,front-wheel drive,four-wheel steering, strong adaptability to complex road conditions,stable and reliable performance.
Parameter
| Item | Basic performance | Unit | Parameters |
| Machine data | Dimension(L×W×H) | mm | 7910×2645×3270 |
| Total weight | kg | 17000 | |
| Concrete pump | Max.concrete output | m3/h | 50 |
| Drive cylinder | mm | ф110 | |
| Concrete cylinder bore | mm | ф200 | |
| Concrete cylinder stroke | mm | 1000 | |
| Delivery pipe | mm | ф125～ф90 | |
| Max.aggregate size | mm | ф15 | |
| Hopper volume | m3 | 0.3 | |
| Concrete outlet pressure | bar | 83 | |
| Chassis | Traveling way | Wheel type | |
| Drive axle | Wet brake axle | ||
| Steering | Front wheel steering | ||
| Driving way | Four wheel drive | ||
| Min.turning radius | m | 11.4 | |
| Engine power | kw | 118 | |
| Wheelbase×Wheel tread | mm | 4400×1887 | |
| Traveling speedⅠ/Ⅱ/Ⅲ/IV | km/h | 5/10/17.5/20 | |
| Max.climbing degree | 36%（20°） | ||
| Min.ground clearance | mm | 300 | |
| Braking distance | m | 5(20km/h) | |
| Boom | Max.spraying height | m | Depth 7.4～Height 16 |
| Max.spraying width | m | ±13.5 | |
| Boom rotation angle | （°） | 270 | |
| Rotation angle-nozzle | （°） | ±180 | |
| Left-right rotation angle-nozzle | （°） | ±120 | |
| Nutation angle | （°） | 8（continuous） | |
| Min.working height-Tunnel | m | 5 | |
| Cable reel | Specification | 3×952 | |
| Length | m | 80 | |
| Additive pump | Pump model | 25R-50-1/7 | |
| Pump type | Hose pump | ||
| Driving way | Inverter motor drive | ||
| Flow rate | L/h | 0～1200 | |
| Additive tank volume | L | 1500 | |
| Max.outlet pressure | bar | 12 | |
| Hydraulic system | Main motor power | kw | 75 |
| Oil tank volume | L | 410 | |
| Degree of hydraulic oil pollution | NAS1638-9 | ||
| Oil pump displacement | ml/r | 190 | |
| Cleaning system | Water pump model | 3WZ-1814HM | |
| Water tank volume | L | 140 | |
| Driving way | Hydraulic | ||
| Air compressor | Motor power | kW | 90/110 |
| Air volume | m³/min | 16/20 | |
| Air pressure | MPa | 0.7/0.8 |
