Maximum spraying height:16m
Maximum spraying wdith:2X13m
Maximum spraying displacement:25m³/h
Cylinder bore:160mm

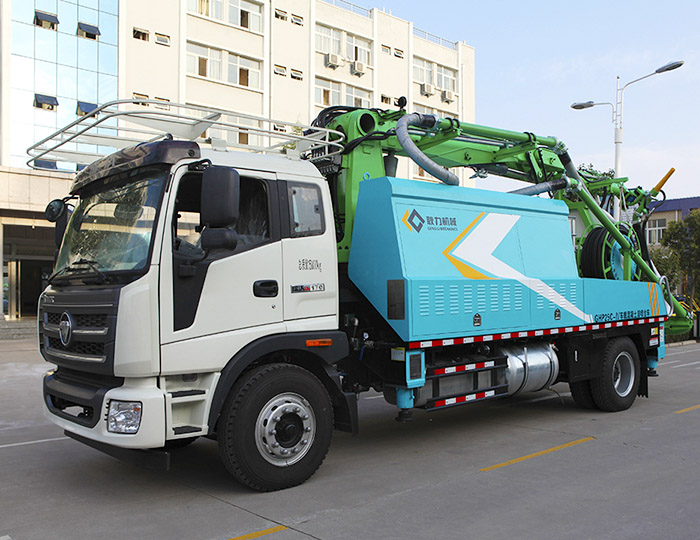

The equipment has a multi-joint degree of freedom controlled manipulator, with large operating coverage and no blind spots, which can meet the construction needs of various cross-section tunnels and improve construction efficiency.
Features
New dynamics emulational mechanical arm
The sectional software of mechanical arm is optimized designed,with the help of simulation optimization to attain a unity of strength and rigidity .And the inner sliding block material of telescopic arm is replaced from nylon to self-lubrication met
Visual electronic control system
The electronic control system extracts main parameters in running state,monitoring real-time operation status,such as oil temperature,hydraulic pressure,filter element ,real-time pumping displacement ,cumulative volume ,accelerator admixture ,switch times
Pumping hydraulic system
Original pump is replaced by Danfoss pump to improve the reliability of the pumping system .Comprehensively upgrade the exit pressure level in the meantime to improve anti-blocking capacity and adaptability to the materials.
Maneuverability
Dual-channel boom control system makes oil cylinder start flexibly ,improve the sensitivity of three nozzles and truly realize”spray anywhere you point out”.
Parameter
Machine data | Dimension | L9300*W2500*H3650mm |
Total weight | 15600kg | |
Pumping system | Maximum spraying height | Depth 6.6m~Height16.6m |
Maximum spraying width | ±14m | |
Theoretical spraying displacement | 25m³/h | |
Cylinder bore | φ160mm | |
Pumping stroke | 1000mm | |
Delivery pipe diameter | φ125-φ90 | |
Maximum aggregate diameter | φ16 | |
Hopper volume | 0.3m³ | |
Outlet pressure of concrete | 75bar | |
Water-cement ratio | 0.45~0.6 | |
Chassis system | Chassis model | FOTON |
Engine power | 170hp | |
Gear box | Fast | |
Wheelbase | 5250mm | |
Maximum traveling speed | 90km/h | |
Maximum climbing degree | 30% | |
Minimum ground clearance | 255mm | |
Barking distance | 12.5m(50km/h) | |
Mechanical arm | Maximum telescopic length | 4600mm |
Pitch angle | ±13.5m | |
Swing angle of arm | 270° | |
Rotation angle around the nozzle | ±180° | |
Left-right rotation angle of nozzle | ±120° | |
Swing angle of nozzle | 8° | |
Maximum spraying height | Depth 16m, Height16.6m | |
Maximum spraying width | ±14m | |
Accelerator system | Accelerator pump model | ED-12 |
Driving way | Hydraulic drive | |
Accelerator displacement | 0~1000L | |
Maximum pressure of accelerator | 20bar | |
Hydraulic system | Main motor power | 55KW |
Fuel tank capacity | 450L | |
Accuracy grade of hydraulic oil | NAS1638-9 | |
Main pump displacement | 145ml/r | |
Washing system | Pump model | 3WZ-1814HM |
Water tank volume | 200L |
