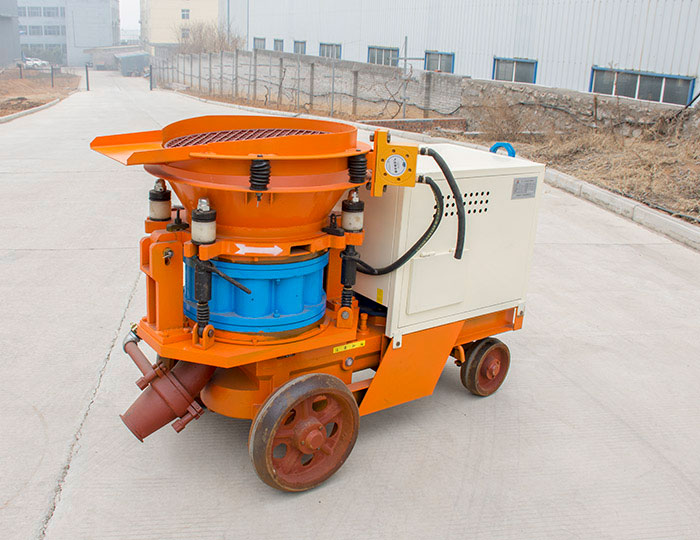

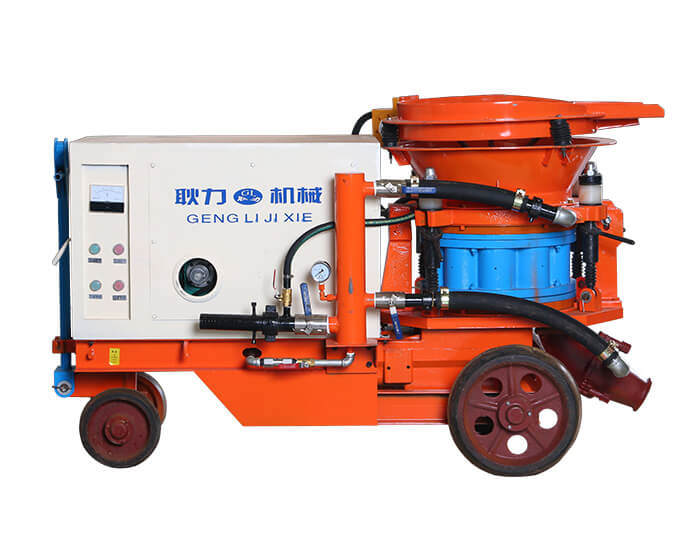

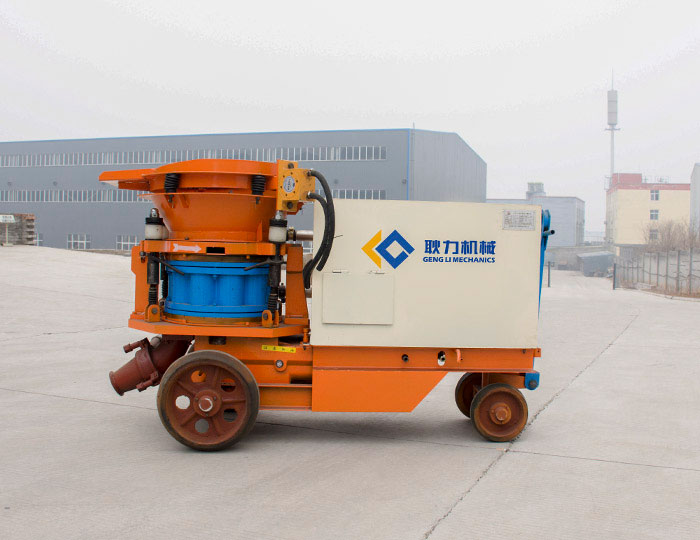

Dry/Wet-mix Shotcrete Machine GSP-D


  • Production capacity:7m³ /h

  • Inner diameter of delivery pipe:Φ57 mm

  • Maximum delivery distance:Horizontal:30m Vertical:20m

Applied range:

Used for sprayed concrete construction work such as tunnels, underground works, slope protection, etc. long lasting.


Features

Reliable performance

Advanced technology, reasonable structure, stable performance

Beautiful appearance and stable performance

The machine has compact structure, beautiful appearance, stable performance, convenient operation and maintenance, and is suitable for various operating environments.

Reasonable design ,stable and safe

easy operation and maintenance, long service life.

Meet the various needs of customers

Dry and wet shotcrete machine to meet customer's various shotcrete needs

Parameter

Item Parameters
Production Capacity 7m³/h
Working Pressure 0.4-0.6Mpa
Maximum Aggregate Diameter 20mm
Total Weight 860kg
Overall Dimension 1850*720*1110mm
Maximum Conveying Distance 30/20m(Horizontal/Vertical)
Maximum Air Consumption 12m3/min
Main Motor Power 7.5kw
Voltage Classes 380V
Feeding Capability for Liquid Accelerating Agent 0-240L/h
Inner Diameter of Conveying Pipe ¢57mm
Dust Concentration ≤10mg/m³
Feeding Height 1.1m
