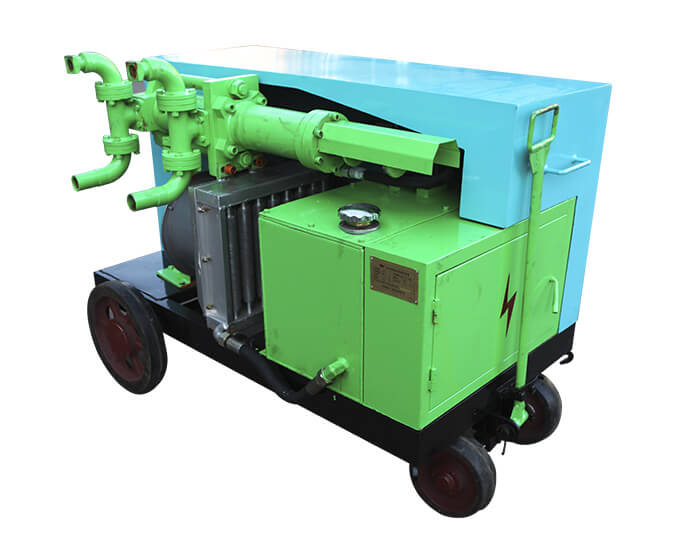

GZJB Hydraulic Grouting Pump

Working ability：4m³ /h
Weight：600kg
Size：1550*1050*1150mm
Conveying Pressure：7Mpa

Applied range: Tunnel excavation and maintenance, road, bridge, dam, mine construction, high-rise building foundation works and all kinds of grouting works

Online inquiry

Send Email

Features Parameter Related Products Related News Contact

Features

High pumping pressure

High pumping pressure ,suitable for the grouting of low water-cement and high-concentration mortar.

Simplify construction technology,improve grouting quality

Upgraded technology to improve grouting quality and make tunnel construction easier.

Grouting pipe is easy to disassemble, and convenient to clean and maintain

The grouting pipe is connected with a quick connector ,making it easy to disassemble and clean.

Grouting one board and two linings within 2 hours, high efficiency

Grouting one board and two linings within 2 hours,and does not occupy the normal construction time

Parameter

tem	Parameters
Theoretical Output	4m3/h
Maximum System Pressure	7Mpa
Conveying Pressure	7Mpa
Total Weight	600kg
Overall Dimension	155010501150mm
Maximum Conveying Distance	200/60m(Horizontal, Vertical)
Main Motor Power	11kw
Voltage Classes	380V
Inner Diameter of Infusion Tube/	￠32/￠51mm
Inner Diameter of Absorption Tube	￠32/￠51mm
