GL18T Hydraulic rock drill
Features
Parameter
| Item | Model |
| Rod tail | R32,R38,T38 |
| Distance from machine top to machine center | 88mm |
| Impact power | 20KW |
| Impact frequency | 42-50HZ |
| Hydraulic system pressure (maximum) | 23Mpa |
| Swing system | Independent wing |
| Swing speed | 0-340rpm |
| Swing torque (maximum) | 540N.m |
| Air consumption of lubrication (at 3Mpa) | 5 I/s |
| Water consumption | 1.1 I/s |
| Machine weight | 170kg |
| Noise level | ＜106dB（A） |
GLMT11G Full hydraulic anchor bolt jumbo
Features
Parameter
| Machine | L×W×H | 16280×2500×2805(mm) |
| Total weight | 27000kg | |
| Hydraulic rock drill | Model | GL18T |
| Impact frequency | 42~50HZ | |
| Maximum pressure of hydraulic system | 230bar | |
| Swing system | Independent wing | |
| Swing speed | 0~250rpm | |
| Drill speed | 0.8m-2.2m/min | |
| Drill diameter | Φ45mm-Φ102mm | |
| Propelling beam | Length | 5680mm |
| Drill rod length | 4460mm | |
| Hole depth | 4070mm | |
| Drill arm | Weight | 2000kg |
| Drill arm extension | 1800mm | |
| Propelling beam | 180° | |
| Lifting angle of boom | +60°~ -30° | |
| Left -right swing angle of boom | +30°~ -25° | |
| Chassis | Travelling way | Wheel type |
| Driving way | 4-wheel driving | |
| Steering | Articulated steering±40° | |
| Engine model | DEUTZ F16L 413 FRW | |
| Output power | 102KW/2300rpm/min | |
| Fluid torque converter | Clark12.9HR2432 | |
| Axle | Hurth 176 | |
| Wheel tread | 2100mm | |
| Wheelbase | 4350mm | |
| Ground clearance | 400mm | |
| Maximum travelling speed | 15km/h | |
| Maximum climbing degree | 20% | |
| Turning radius | Inner ≥5.6mm，Outer ≥8.3mm | |
| Hydraulic system | Main motor | HPP500,45KW |
| System pressure | 240bar |

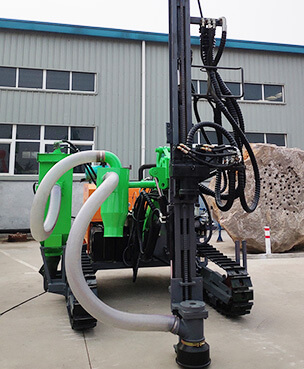

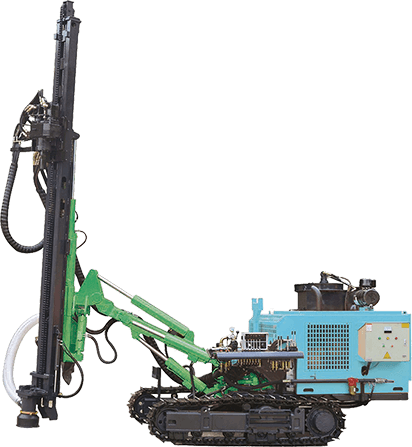

GL726 Crawler down-the-hole drill carriage
Parameter
| Whole machine | project name | parameter |
| Dimensions (L*W*H) | 5620x2045x1950mm | |
| Total Weight | 4t | |
| Applicable rock | f=6~20 | |
| Drilling diameter | 90~130mm | |
| Drilling vertical hole depth | 25m | |
| Drilling horizontal hole depth | 30m | |
| Drill boom | Drill boom pitch angle | 70°up and down |
| Boom swing angle | 30°left and 30°right | |
| Pitch angle of carriage | 100°Up and down | |
| Swing angle of carriage | Left 30°Right 30°(Special working conditions 90°) | |
| Maximum lifting force | 18KN | |
| One-time advancing trip | 3000mm | |
| Propeller compensation length | 1200mm | |
| Maximum height of drilling horizontal hole | 3500mm | |
| Working air pressure(when equipped with impactor) | 0.7~1.6Mpa | |
| Air consumption(when equipped with impactor) | 7~12m³/min | |
| Impact frequency | 950~1500 times/min | |
| Chassis | Rotating speed | 0~70r/min |
| Rotation torque | 1500N.m | |
| monitor rate | 33kw | |
| Walking speed | 2.5km/h | |
| Stand-alone climbing ability | 25° | |
| Height of chassis from ground | 300mm |
